Modal Shakers
Lightweight Exciters for Experimental Modal Testing

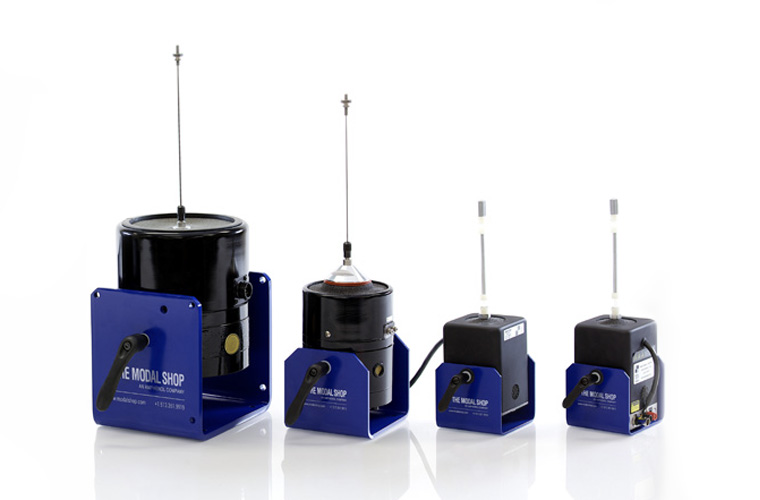

Modal shakers and modal shaker kits from The Modal Shop are used in test laboratories around the globe. Offering a complete line of shakers – from miniature vibration shakers to complete modal shaker systems – these solutions are designed for a wide range of modal analysis applications. System force ratings range from 2 lbf (9 N) to 60 lbf (267 N).
Miniature inertial shakers facilitate testing in hard to reach locations. Miniature vibration shakers deliver a high degree of flexibility when testing. The SmartShaker™ Series offers a built-in power amplifier, creating an all-in-one shaker with plug-and-play capabilities for both modal and vibration tests. Modal shakers are designed with a through-hole armature to simplify a common testing challenge: stinger setup and alignment. These shakers are used in applications from component testing to aerospace ground vibration tests.
| Shaker Model |
Max Force
lbf (N) pk |
Max Frequency
Hz [2] |
Stroke
In (mm) pk‑pk |
Weight
lb (kg) |
Type |
| 2002E |
2 (9) |
3 000 |
0.35 (8.9) |
0.56 (0.25) |
Inertial |
| SmartShaker™ K2004E01 [1] |
4.5 (20) |
11 000 |
0.2 (5) |
7 (3) |
Mini with Integrated Amp |
| 2004E [1] |
4.5 (20) |
11 000 |
0.2 (5) |
6 (3) |
Mini |
| SmartShaker™ K2007E01 [1] |
7 (31) |
9 000 |
0.5 (13) |
7 (3) |
Mini with Integrated Amp |
| 2007E [1] |
7 (31) |
9 000 |
0.5 (13) |
6 (3) |
Mini |
| 2025E |
13 (58) |
9 000 |
0.75 (19) |
13 (6) |
Modal |
| 2060E |
60 (267) |
6 000 |
1.4 (36) |
37 (17) |
Modal |
