ACCELEROMETER Model 357B03
,

ACCELEROMETER Model 357B03

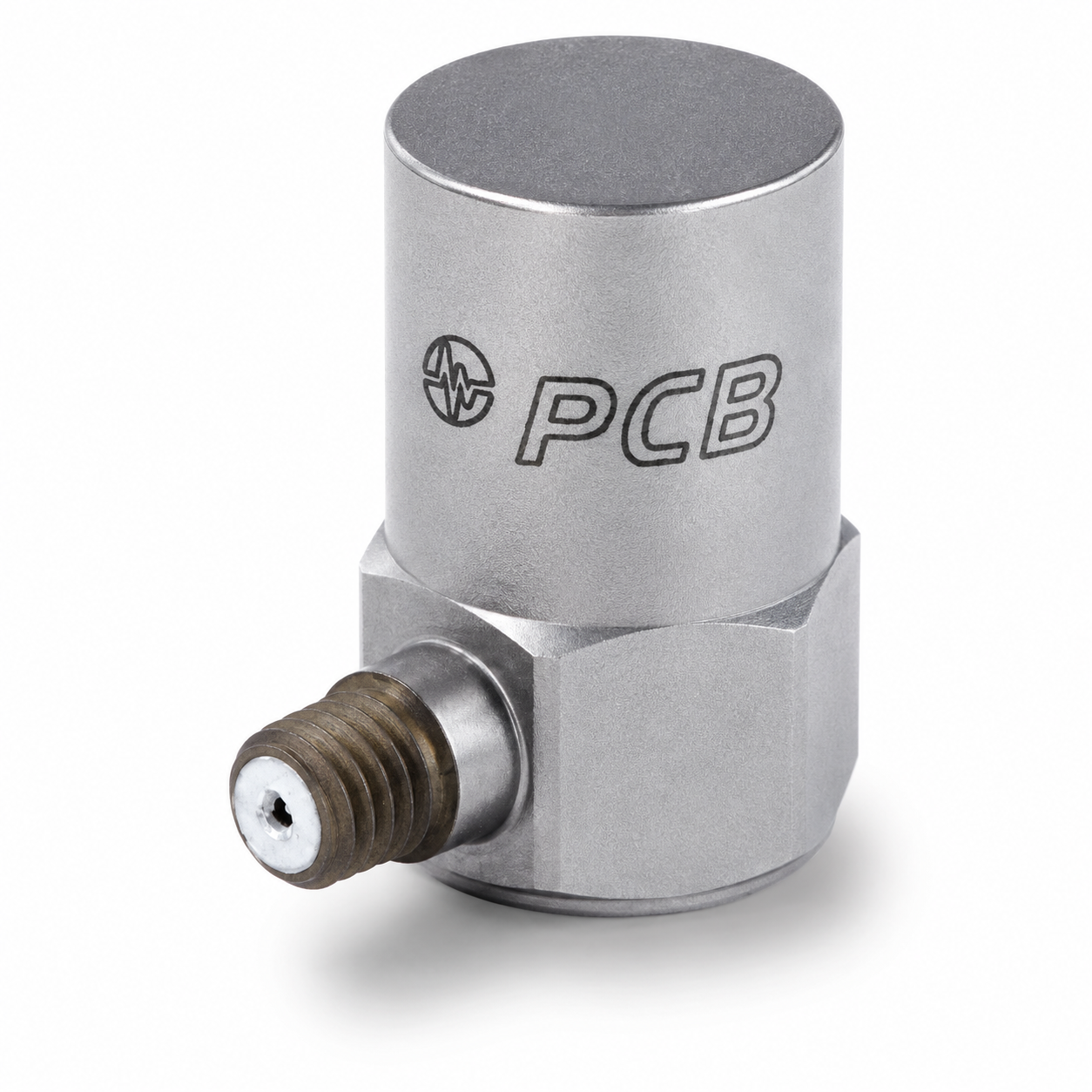

Platinum Stock Products; High temp., ceramic shear, charge output accel., 10 pC/g, 9k Hz, 10-32 side conn.(-95 F to +500 F)

  • Sensitivity: (±15%)10 pC/g (1.02 pC/(m/s²))
  • Measurement Range: ±2000 g pk (±19600 m/s² pk)
  • Frequency Range: (+5%)9000 Hz
  • Weight: 0.39 oz (11 gm)
SKU: 357B03 Categories: , Tags: , , , , Brand: ,

Request Consultation

Please leave your contact details and requirements. Our team will get back to you shortly.

English: SI:
Performance
Sensitivity (±15 %) 10 pC/g 1.02 pC/(m/s²)
Measurement Range ±2000 g pk ±19600 m/s² pk
Frequency Range (+5 %) 9000 Hz 9000 Hz [2]
Frequency Range (+10 %) 12000 Hz 12000 Hz [2]
Frequency Range (+3 dB) 18000 Hz 18000 Hz [2]
Resonant Frequency ≥38 kHz ≥38 kHz
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±21000 g pk ±206010 m/s² pk
Temperature Range -95 to +500 °F -71 to +260 °C
Temperature Response See Graph %/°F See Graph %/°F [3]
Base Strain Sensitivity 0.0002 g/µε 0.002 (m/s²)/µε [3]
Electrical
Capacitance 930 pF 930 pF [3]
Insulation Resistance (at 500°F) ≥100000000 Ohm ≥100000000 Ohm [3]
Insulation Resistance (at 70° F [21°C]) ≥1000000000000 Ohm ≥1000000000000 Ohm
Output Polarity Negative Negative
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size – Hex 1/2 in 1/2 in
Size – Height 0.81 in 20.6 mm
Weight 0.39 oz 11 gm [3]
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 10-32 Female 10-32 Female

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
080A109 Petro Wax, one square, 1″ x 1″ x 0.25″ 1
081B05 Mounting stud, 10-32 to 10-32, 0.275″ long, BeCu w/shoulder 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
M081B05 Mounting stud, 10-32 to M6x0.75-6g, 0.275″ long, BeCu 1

Optional Versions

(J) Ground Isolated

English SI
Electrical Isolation 100000000 Ohm
Size – Hex 0.5 in 12.7 mm
Frequency Range 8000 Hz
Resonant Frequency ≥30 kHz
Frequency Range 7000 Hz
Size – Height 0.86 in 21.8 mm

(W) Water Resistant Cable

English SI
Electrical Connector Sealed Integral Cable
Electrical Connection Position Side
