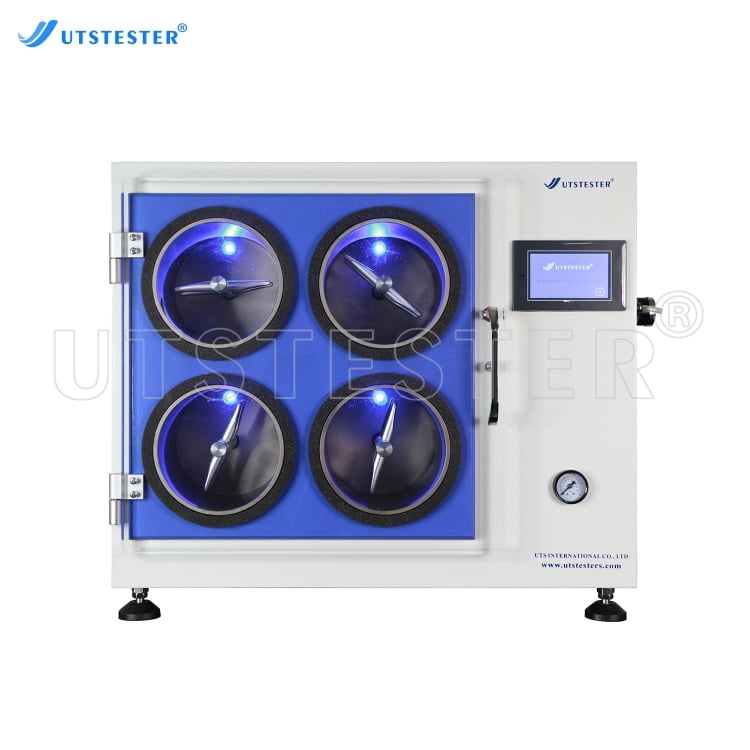

M011B Random Tumble Pilling Tester
- Model :M011B
- Brand :UTSTESTER
- Certificate :CE, ISO 17025 Calibration Certificate
- Lead Time :15-30 Days
- Payment :TT, LC
- Original Region :MADE IN CHINA
- Port Of Dispatch :CHINA PORT
- Standards :GB/T4802.4 ISO12945.3 ASTM D3512 ASTM D1375
M011B Random Tumble Pilling Tester
M011B Random Tumble Pilling Tester is used to test the pilling performance of fabrics under the condition of free tumbling and rubbing in a roller box.
Features
- The instrument adopts touch screen control, the interface is simple and easy to understand, easy to operate.
- With open door detection, the door open motor automatically stops rotating, making the instrument safer.
- One-button start, press the start button gas source and motor work at the same time, the experiment is completed automatically stop, and buzzer reminder.
- The rotating component adopts round belt pulley, the instrument runs smoothly and has low noise.
Test Standards
GB/T4802.4 ISO12945.3 ASTM D3512 ASTM D1375
Key Parameters
| Model | M011B |
| Test chambers | 4 |
| Roller size | (146±1) x (152±1)mm |
| Cork lining size | (452±1) x (146±1) x (1.5±1) mm( L x W x H) |
| Stirring rod size | L=121±1mm |
| Rotating speed | 1200±1 rpm |
| Compressed air | 0.014 – 0.021 Mpa |
| Power supply | AC220V 50/60Hz |
| Dimensions | 480×400×680mm (L×W×H) |
| Weight | 80kg |
