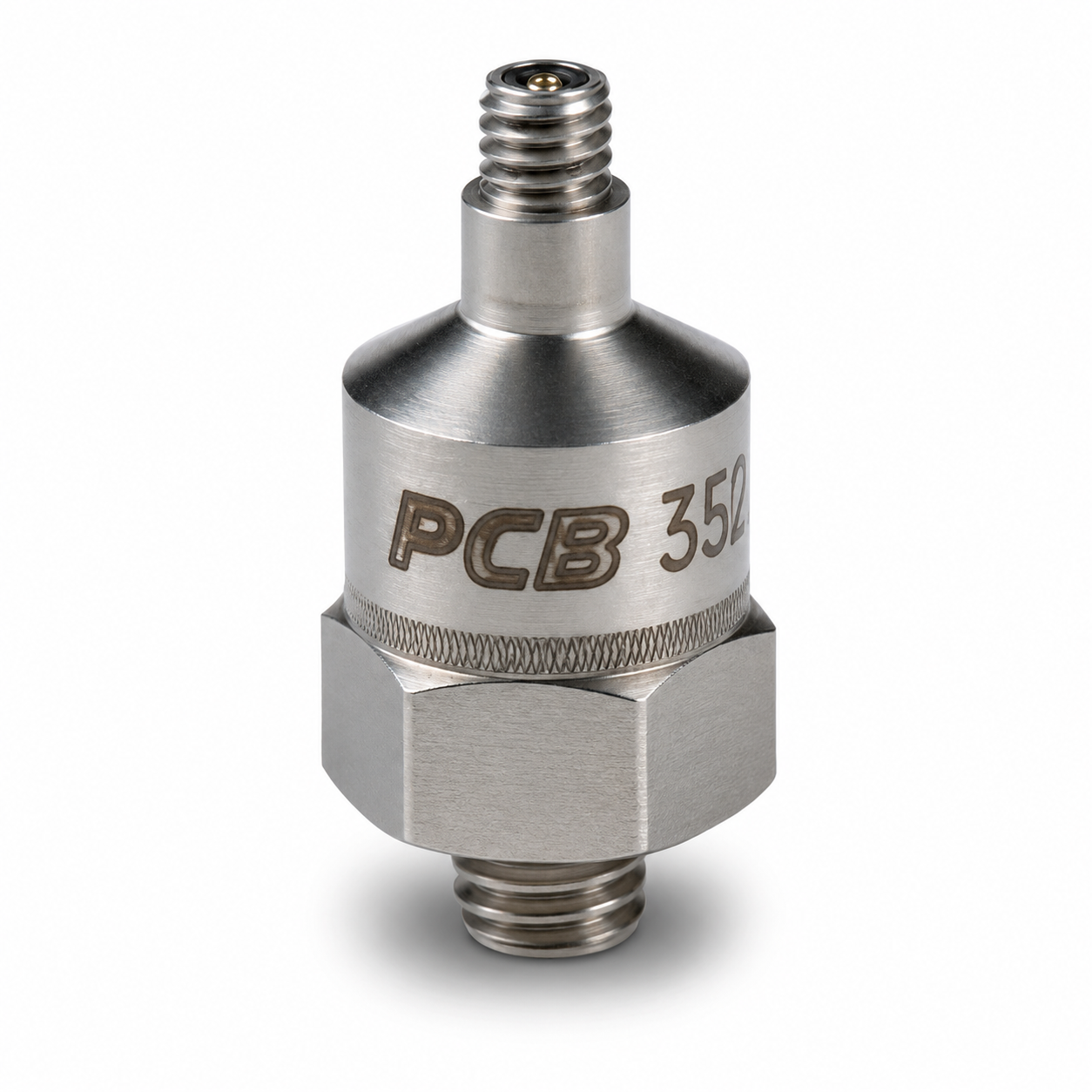

ACCELEROMETER Model 352A60
,

ACCELEROMETER Model 352A60

High frequency, ceramic shear ICP® accel., 10 mV/g, 5 to 60k Hz, 5-44 top conn.

This miniature accelerometer model achieves extremely high frequency response from 5 Hz to 60 kHz, and incorporates a LP filter to avoid saturation of the output signal to to excessive vibration.

  • Sensitivity: (±15%)10 mV/g (1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4905 m/s² pk)
  • Broadband Resolution: 0.002 g rms (0.02 m/s² rms)
  • Sensing Element: Ceramic
  • Weight: 0.21 oz (6.0 gm)
Categories: , Tags: , , , , Brand: ,

Request Consultation

Please leave your contact details and requirements. Our team will get back to you shortly.

English: SI:
Performance
Sensitivity (±15 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk [5]
Frequency Range (±3 dB) 5 to 60000 Hz 5 to 60000 Hz
Electrical Filter Corner Frequency 45 kHz 45 kHz [4]
Electrical Filter Roll-off 10 dB/decade 10 dB/decade [4]
Resonant Frequency ≥95 kHz ≥95 kHz
Broadband Resolution (1) 0.002 g rms 0.02 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 % [3]
Environmental
Overload Limit (Shock) ±5000 g pk ±49050 m/s² pk
Temperature Range -65 to 250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Base Strain Sensitivity ≤0.05 g/µε ≤0.49 (m/s²)/µε [2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA [5]
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 0.02 to 0.06 sec 0.02 to 0.06 sec [4]
Spectral Noise (10 Hz) 160 µg/√Hz 1570 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 40 µg/√Hz 390 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 15 µg/√Hz 147 (µm/sec2)/√Hz [2]
Spectral Noise (10 kHz) 10 µg/√Hz 98 (µm/sec2)/√Hz [2]
Physical
Size – Height 0.81 in 21.6 mm
Size – Hex 3/8 in 3/8 in
Weight 0.21 oz 6.0 gm [2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 5-44 Coaxial 5-44 Coaxial
Electrical Connection Position Top Top
Mounting Integral Stud Integral Stud
Mounting Thread 10-32 Male 10-32 Male

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
ACS-52 Single Axis Amplitude Cal -3dB to +3dB frequency range 1

Optional Versions

(A) Adhesive Mount

English SI
Mounting Adhesive
Mounting Thread None – Adhesive Mount Only
Size – Hex 3/8 3/8
Size – Height 0.68 17.3

(M) Metric Mount

English SI
Mounting Thread M6 x 0.75 Male
