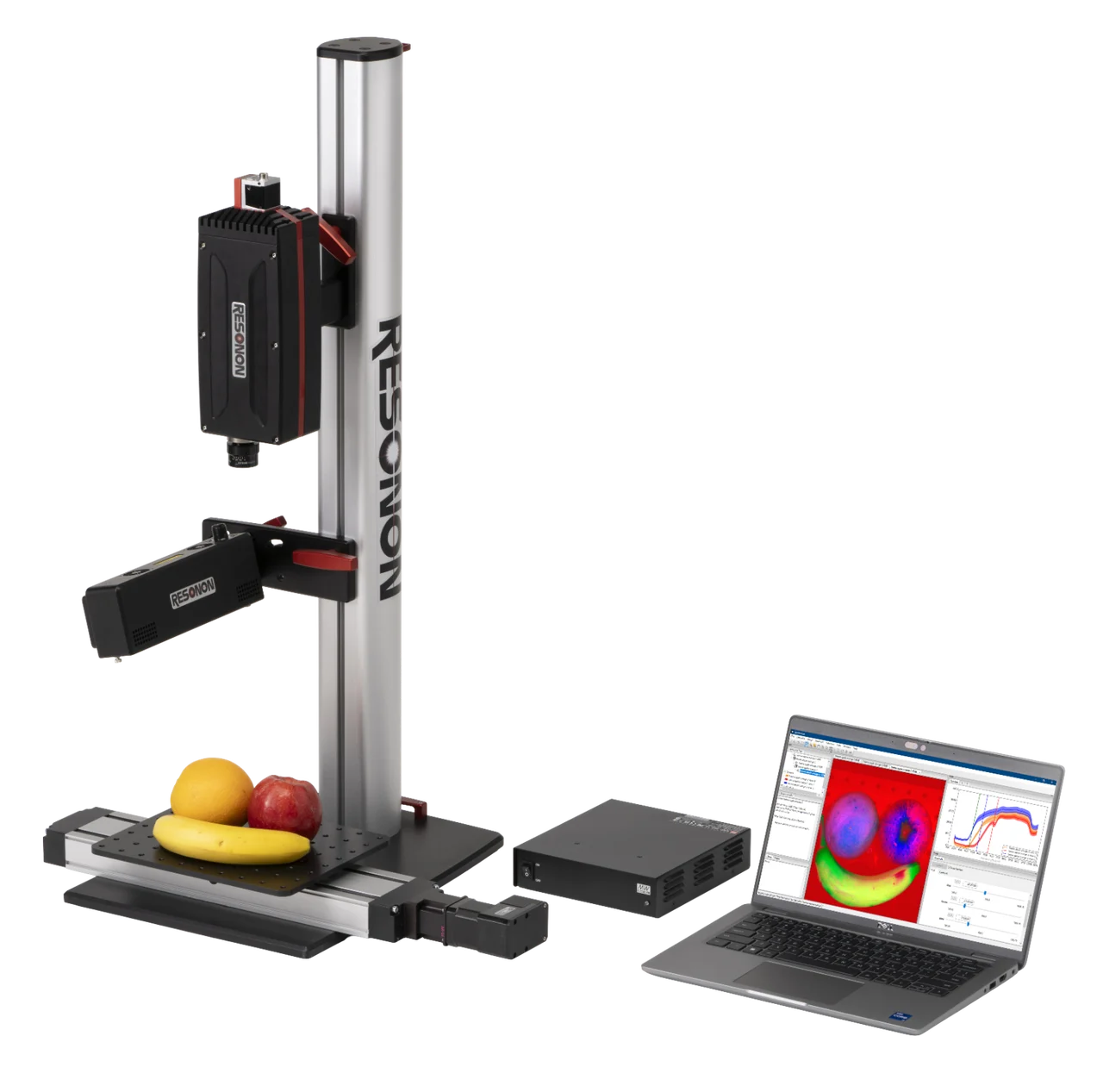

The Benchtop System – Reflectance Configuration is used to acquire reflectance data in a laboratory environment. A Resonon line-scan hyperspectral camera is mounted on a tower, the sample is placed on a linear translation stage below the camera and is illuminated from above. During data acquisition the stage moves, translating the sample beneath the camera. The camera and stage are controlled using Spectronon software.
A high-intensity, 6-fixture halogen light provides stabilized broad-band illumination across the entire measured spectra. Both the imager and lighting are adjustable vertically along the length of the tower.
Resonon’s systems contain all hardware and software necessary to acquire and analyze hyperspectral data.
Benchtop systems can be fitted with any of Resonon’s hyperspectral cameras covering the 330 – 2500 nm spectral range.
Standard System Components:
- Hyperspectral camera
- Objective lens
- Linear translation stage
- Mounting tower
- 6- fixture halogen light with stabilized power supply
- Spectronon software
- Calibration tile
Options:
-
A halogen line light or a hyperspectral LED light (VNIR and IR option) can be purchased instead of the 6-fixture halogen light. For guidance on which to choose for your specific application, please see this comparison.
-
The hyperspectral LED light, the halogen line light, and the 6-fixture halogen light can all be purchased as stand-alone add-on kits to fit existing benchtop systems.
-
High-resolution 16″ laptop with i5 CPU, 32 GB RAM, and 512 GB hard drive
-
High-performance laptop upgrade with 16″ high-resolution screen, i7 CPU, 64 GB RAM, and 1 TB hard drive.
- The Resonon Benchtop Enclosure, an add-on accessory for the Benchtop System, eliminates unwanted ambient light without needing to turn off room lights.
Resonon’s hyperspectral imaging systems are rugged and built to last, and we guarantee their performance. All products include a two-year warranty. For details, please see our Warranty and Repairs page.
