Digiducer® USB Digital Accelerometer

Plug and Play Piezoelectric Vibration Sensing

Digiducer USB Digital Accelerometer Models 333D01, 333D04, 333D05, and 333D06 put high-quality, low-hassle vibration measurements in the palm of your hand. This USB Digital Accelerometer allows users to take professional-grade vibration measurements right from a PC, smartphone, or tablet, turning any device into a portable, hand-held vibration meter spectrum analyzer. The simplicity of Digiducer opens the door to those just starting out in vibration, while still providing the accuracy and range needed by the experts.

CE| UKCA

Highlights

  • USB Plug-and-Play Capability
  • Rugged Piezoelectric Sensing Technology
  • Broad Frequency and Dynamic Range
  • Phone, Tablet, and PC Ready
  • Record and Send Data to Off-Site Specialists
  • Embedded Calibration Data
  • Detachable cable options offer choice of cable terminating in USB-A or USB-C

Applications

  • Vibration Testing & Troubleshooting
  • Universities and Educational Research
  • Predictive Maintenance and Condition Monitoring
  • Production Line Testing
  • Automotive NVH

With threaded mounting or optional magnetic mounting base and various cable length options, taking measurements is quick and easy, even in the most difficult to reach places. Digiducer USB Digital Accelerometer delivers accurate, useful vibration testing in a package you can trust.

Compatible with a variety of software applications, Digiducer allows users to choose the app that best fits their testing needs. The use of standard drivers makes it possible to write custom software if necessary and connect it to IoT systems. With threaded mounting or an optional magnetic mounting.

Categories: , Tags: , , , , , Brand: ,

Request Consultation

Please leave your contact details and requirements. Our team will get back to you shortly.

Specifications

View Datasheets:  333D01 and 333D04 | 333D05, 333D05-C, 333D06, and 333D06-C
View Specification Sheets: 333D01 | 333D04 | 333D05 | 333D06

333D01 333D04 333D05
333D05-C		 333D06
333D06-C
Performance
Measurement Range –
Channel A		 ± 20 g pk
(± 196 m/s2)		 ± 100 g pk
(± 980 m/s2)		 ± 20 g pk
(± 196 m/s2)		 ± 100 g pk
(± 980 m/s2)
Measurement Range –
Channel B		 ± 10 g pk
(± 98 m/s2)		 ± 50 g pk
(± 490 m/s2)		 ± 10 g pk
(± 98 m/s2)		 ± 50 g pk
(± 490 m/s2)
Frequency Range (±5 %) 120 CPM to 480 000 CPM (2 Hz to 8000 Hz)
Physical

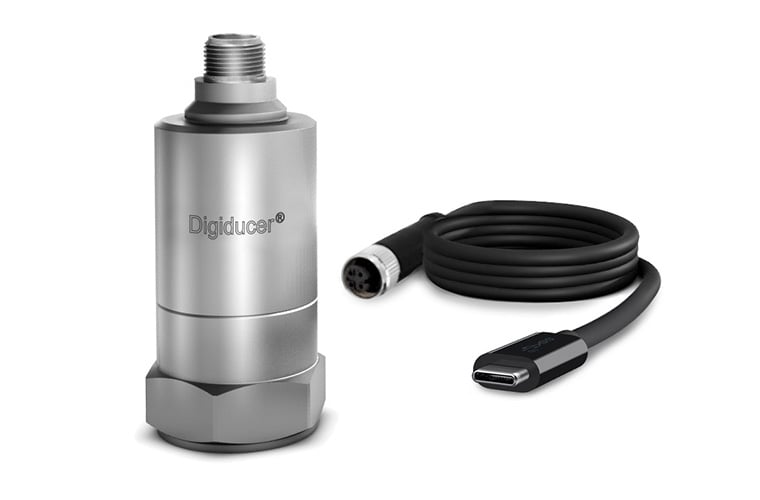

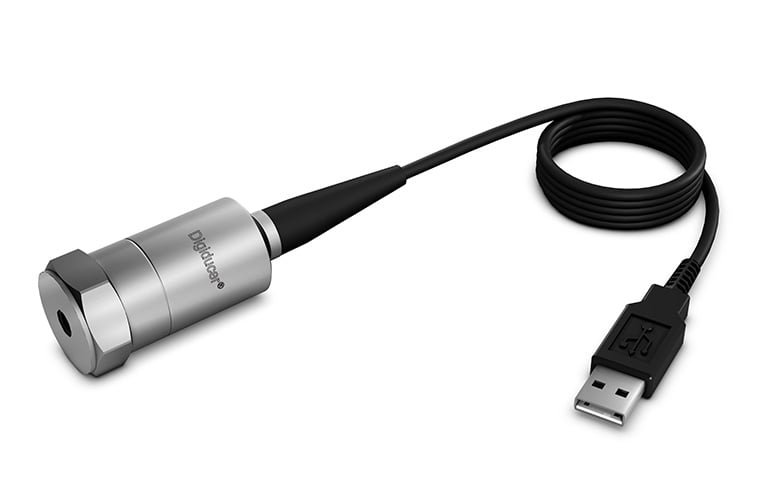

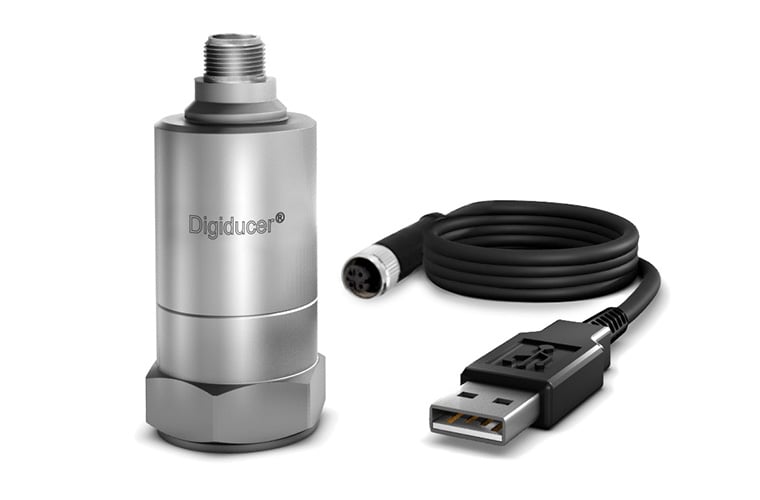

Cable Connectors Integral to USB-A Detachable M12 to USB-A
Detachable M12 to USB-C (-C models)
Temperature Range 14 °F to 158 °F (-10 °C to +70 °C)
Housing Material Stainless Steel
Sealing Welded Hermetic
Ingress Protection IP67
Sensing Element Piezoelectric Ceramic
