Features

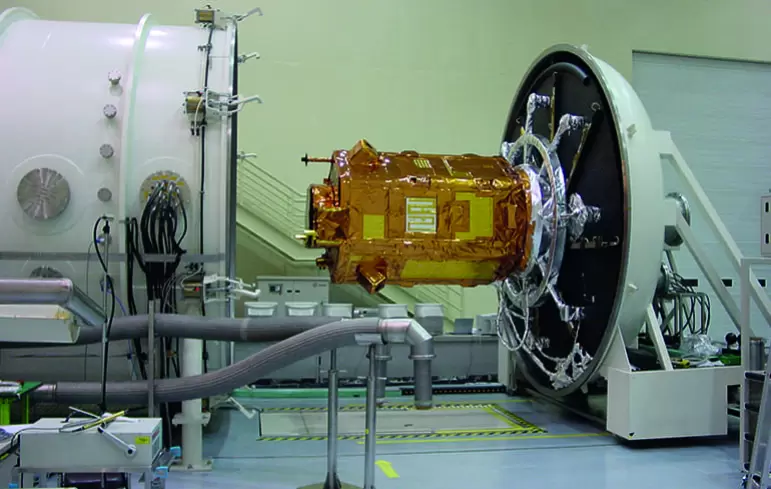

Example of a customized space simulator built according to customer specifications.
Test: high vacuum, temperature
- Outside dimensions (chamber only): 7200x16000x9000 mm (LxDxH)
- Inside working dimensions: 5500×10000 mm (ØxL)
- Inside working volume: 240 m3
- Temperature range: -190°C / +130°C
- Rate of temperature change:
- – 1°C/min from -100°C to +100°C
- – 1°C/min from +100°C to -100°C
- Vacuum limit: 1×10-6 mbar
- Special features:
- Door with up-and-over system for loading space vehicles
- Special trolley for loading space vehicles on rails
- Internal monorail crane
- Spaceship horizontality control system
Software
The software for this type of chamber is an application that includes all the functions based on the specifications requested by the customer. The chamber has a built-in control panel for controlling and managing its functions. The chamber can also be controlled remotely using the WinKratos software or an equivalent application.
Range
ACS can provide customized solutions that are adapted to the requests of every customer. Thanks to its accurate analysis of testing needs and highly specialized technical consultancy, ACS designs and manufactures environmental simulation chambers in the configuration most suitable for meeting the customer’s testing needs.
