Features

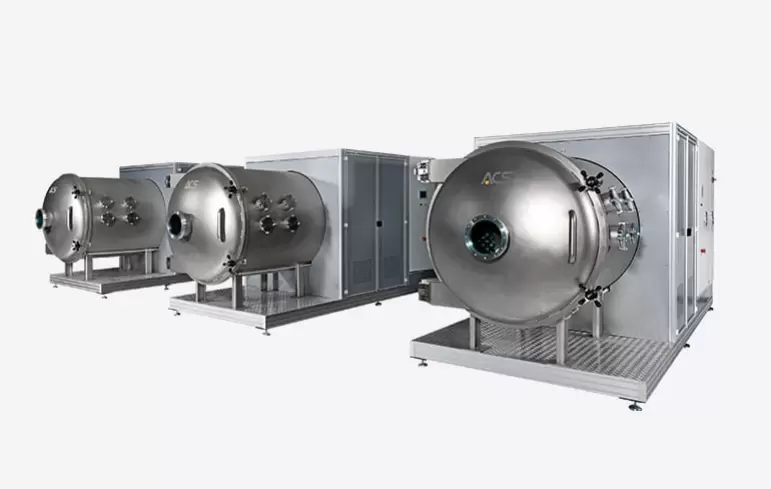

The standard line of ACS space simulators includes a range of products with diameters ranging from less than 0.8 m to 1.5 m.
- High quality and extensive experience in vacuum pumping systems;
- High quality black paint with a solution for low outgassing at maximum temperatures (> + 150°C) according to ESA ECSS-Q-ST-70-02C standard;
- Special design of the shroud to withstand maximum heat dissipation (> 5 kW / m2)
Standard Configuration
- Thermoregulation through the shroud and thermal plate
- High vacuum with turbomolecular pump
- Inspection window
- Hinged door
Accessories
- Cryogenic vacuum pump for vacuum up to 10-7 mbar
- Sliding door opening
- Thermal plate installed on the sliding door
- Decontamination plate
Software
The software for this type of chamber is an application that includes all the functions based on the specifications requested by the customer. The chamber has a built-in control panel for controlling and managing its functions. The chamber can also be controlled remotely using the WinKratos software or an equivalent application.
Range
The line of ACS chambers dedicated to testing on photovoltaic panels includes the three following standard models:
- HVT400
- HVT1000
- HVT2700
