For Worker Safety and Product Testing | Model HVM200

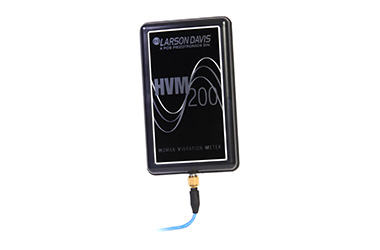

The HVM200 is a small, rugged vibration meter with built-in Wi-Fi that can be used to measure hand-arm, whole body, and general vibration. It includes the metrics and frequency weightings needed to measure human vibration. This 3-channel meter includes measurement filters that are compliant to ISO 8041:2021 and are designed to measure per ISO 2631-1, 2, & 5 and ISO 5349 in support of the American Conference of Governmental Industrial Hygienists (ACGIH) Threshold Limit Values (TLVs) and Directive 2002/44/EC. This makes the HVM200 an ideal choice for an instrument used to demonstrate compliance with human vibration requirements and regulations worldwide.
- Hand-arm Vibration Measurement to ISO 5349
- Whole-Body Vibration Measurement to ISO 2631
- General Vibration Measurement
Features
- Control and View Data From LD Atlas™ Mobile App
- Removable Micro SD Memory Card
- USB 2.0 and Wi-Fi
- Replaceable Lithium Battery
- ISO 8041:2021 Compliant Filters
- Three Measurement Channels
| Measured Values | |
|---|---|
| Metrics by mode: Vibration Hand-arm Whole-body |
RMS, Peak, Min, Max (x, y, z & Σ) RMS, Peak, Min, MTVV, A(1), A(2), A(4), A(8) (x, y, z & Σ) RMS, Peak, Min, MTVV, A(8), A(8)Exp, EP, VDV (x, y, z & Σ) |
| Measurement Units | m/s2, cm/s2, ft/s2, in/s2, g, dB |
| Popular Sensors | |
|---|---|
| SEN020 | Triaxial accelerometer, 0.1 mV/(m/s2), 10-32 fem thread |
| SEN026 | Triaxial accelerometer, 1 mV/(m/s2), for ADP063 |
| SEN027 | Seat pad with triaxial accelerometer, 10 mV/(m/s2) |
| SEN040F | Triaxial accelerometer, 0.1 mV/(m/s2), for ADP080A, 81A and 82A |
| SEN041F | Triaxial accelerometer, 1 mV/(m/s2), for ADP080A, 81A and 82A |
Wireless Mobile Interface
Leverage the power of wireless portable electronics to make measuring human vibration easy. Our free app, available on Google Play™ and the Apple App Store, can be used to improve the way measurements are made by using portable electronics to control the measurement and view data.
1/1 and 1/3 Octave Filters (Optional)
Determine the frequency content of measured vibration levels by configuring the HVM200 with the optional IEC 61260 class 1 compliant 1/1 and 1/3 octave filters (0.5 Hz to 2000 Hz and 0.4 Hz to 2500 Hz respectively). Data can then be transferred for reporting or further analysis using USB, Wi-Fi or a removable micro SD memory card.
Record Sampled Time Domain Data (Optional)
Because the HVM200 supports a large removable micro SD memory (up to 32 GB), storing and archiving the sampled time data for all three channels is now possible. Data is stored in a 24-bit format, and files can be read with tools such as MATLAB® or GNU Octave for additional processing.
