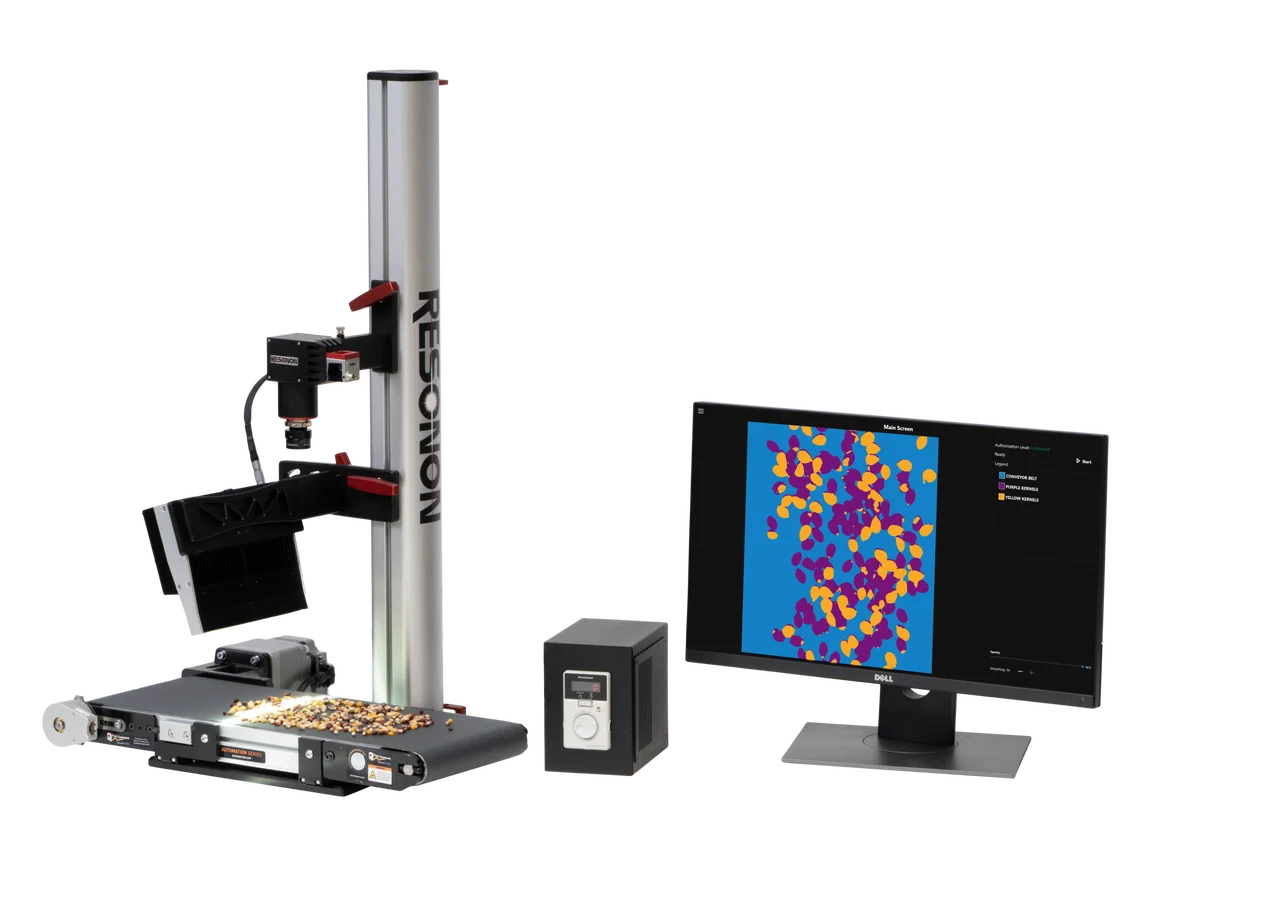

Automated Hyperspectral System with RVS Software
The SpectralSight System is used to rapidly acquire and analyze hyperspectral data in both laboratory and industrial settings.
Resonon’s Real-time Vision System (RVS) software automatically detects objects on the conveyor belt and creates a datacube for each object. Machine learning algorithms in RVS can be used to classify objects on the belt or quantify a variable via regression, enabling optical sorting.
Datacubes collected with RVS can be analyzed in our Spectronon software.
The SpectralSight system can be fitted with Resonon’s Pika L, Pika L-F, Pika IR, Pika IR+, Pika IR-L, and Pika IR-L+ cameras, covering the 400 – 1700 nm spectral range.
Standard System Components:
- Hyperspectral camera and Objective lens
- Conveyor belt system (gray or food-processing blue belt options)
- Mounting tower and calibration tile
- 6- fixture halogen flood light with stabilized power supply
- High-performance desktop computer with RVS software preloaded
Options:
- A SpectralSight Conversion Kit is available to turn an existing Resonon Benchtop System into a SpectralSight System.
-
A halogen line light or a hyperspectral LED light (VNIR and IR option) can be purchased instead of the 6-fixture halogen light. For guidance on which to choose for your specific application, please see this comparison.
Resonon’s hyperspectral imaging systems are rugged and built to last, and we guarantee their performance. All products include a two-year warranty. For details, please see our Warranty and Repairs page.
We offer Virtual and In-Person training to help you begin taking and analyzing data quickly.
