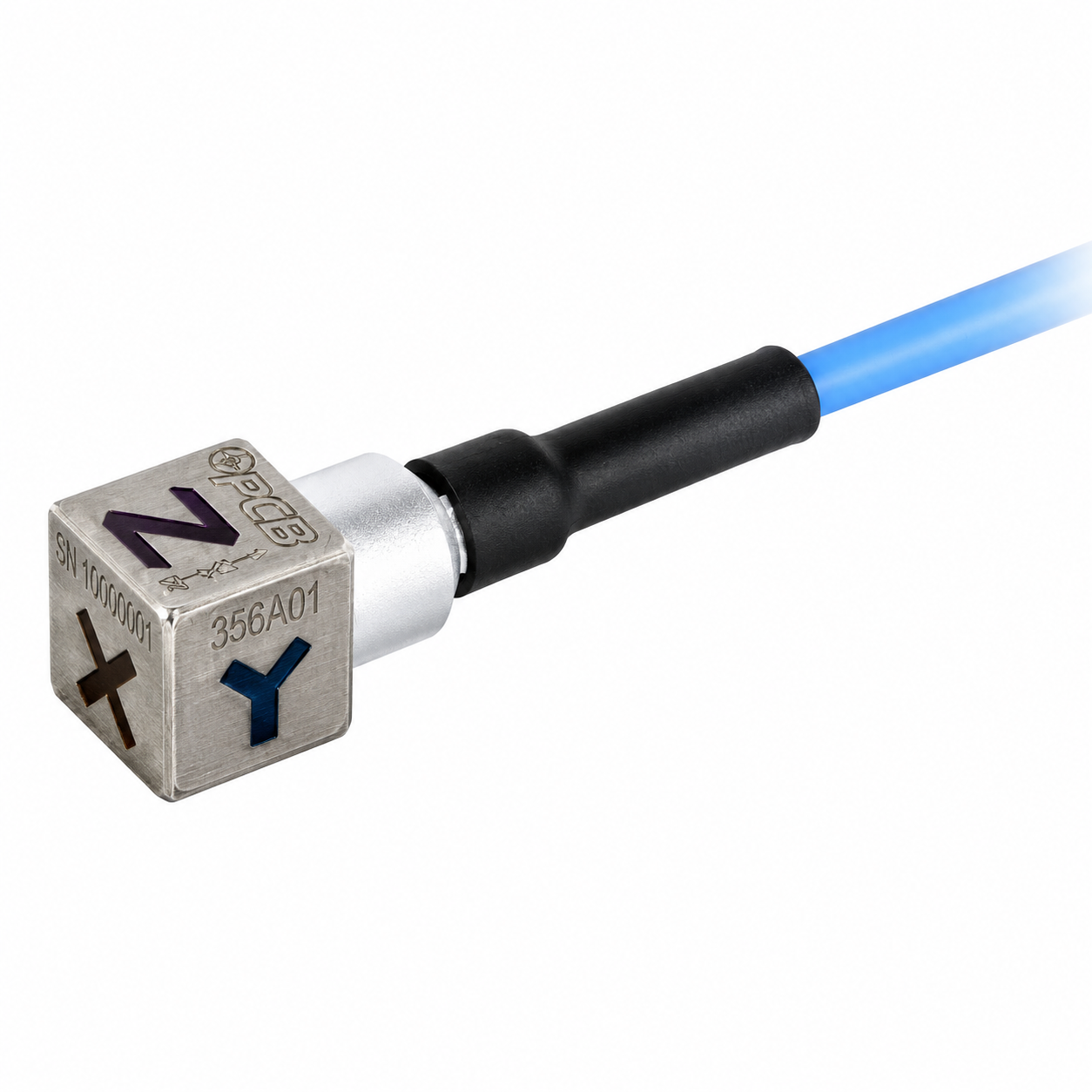

| English: | SI: | ||
|---|---|---|---|
| Performance | |||
| Sensitivity (±20 %) | 5 mV/g | 0.51 mV/(m/s²) | |
| Measurement Range | ±1000 g pk | ±9810 m/s² pk | |
| Frequency Range (±5 %) (y or z axis) | 2 to 8000 Hz | 2 to 8000 Hz | |
| Frequency Range (±5 %) (x axis) | 2 to 5000 Hz | 2 to 5000 Hz | |
| Frequency Range (+1 dB) (x axis) | ≥8 kHz | ≥8 kHz | |
| Resonant Frequency | ≥50 kHz | ≥50 kHz | |
| Broadband Resolution (1) | 0.003 g rms | 0.03 m/s² rms | [2] |
| Non-Linearity | ≤1 % | ≤1 % | [1] |
| Transverse Sensitivity | ≤5 % | ≤5 % | |
| Environmental | |||
| Overload Limit (Shock) | ±10000 g pk | ±98100 m/s² pk | |
| Temperature Range (Operating) | -65 to +250 °F | -54 to +121 °C | [3] |
| Temperature Response | See Graph %/°F | See Graph %/°F | [2] [3] |
| Electrical | |||
| Excitation Voltage | 18 to 30 VDC | 18 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | 2 to 20 mA | |
| Output Impedance | ≤200 Ohm | ≤200 Ohm | |
| Output Bias Voltage | 7 to 12 VDC | 7 to 12 VDC | |
| Discharge Time Constant | 0.24 to 1.0 sec | 0.24 to 1.0 sec | |
| Settling Time (within 10% of bias) | <3 sec | <3 sec | |
| Spectral Noise (1 Hz) | 1200 µg/√Hz | 11772 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 Hz) | 300 µg/√Hz | 2943 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 100 µg/√Hz | 981 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 30 µg/√Hz | 294 (µm/sec2)/√Hz | [2] |
| Physical | |||
| Sensing Element | Ceramic | Ceramic | |
| Sensing Geometry | Shear | Shear | |
| Housing Material | Titanium | Titanium | |
| Sealing | Hermetic | Hermetic | |
| Size – Height | 0.25 in | 6.35 mm | |
| Size – Length | 0.25 in | 6.35 mm | |
| Size – Width | 0.25 in | 6.35 mm | |
| Weight (without cable) | 0.04 oz | 1.0 gm | [2] |
| Electrical Connector | Integral Cable | Integral Cable | |
| Electrical Connection Position | Side | Side | |
| Cable Length | 5 ft | 1.5 m | |
| Cable Type | 034 4-cond Shielded | 034 4-cond Shielded | |
| Mounting | Adhesive | Adhesive | |
* All specifications are at room temperature unless otherwise specified.
Accessories
| Supplied | ||
| 034G05 | 4-conductor, low noise, shielded FEP cable, 5-ft, 4-socket plug to (3) BNC plugs (labeled X Y Z) | 1 |
| 080A109 | Petro Wax, one square, 1″ x 1″ x 0.25″ | 1 |
| 080A90 | Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) | 1 |
| ACS-1T | Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable | 1 |
Optional Versions
(HT) High temperature, extends normal operation temperatures
| English | SI | |
|---|---|---|
| Temperature Range | -65 to +325 | -54 to +163 |
(TLD) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4
| English | SI | |
|---|---|---|
| Excitation Voltage | 19 to 30 VDC | 19 to 30 |
| Output Bias Voltage | 7.5 to 13 VDC | 7.5 to 13 |
(W) Water Resistant Cable
| English | SI | |
|---|---|---|
| Electrical Connector | Sealed Integral Cable | |
